-11% Off

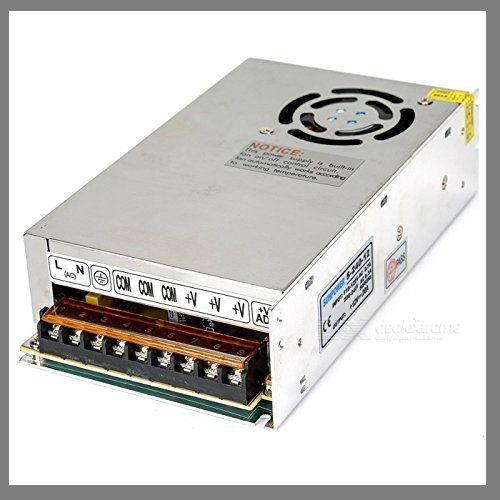

12V 20Amp Power Supply Metal Body

1,800.00 1,600.00

Compare

Description

  • 1. Good anti-interference performance and high reliability.
  • 2. Low operating temperature and long service life.
  • 3. Wide input voltage range, (100-240V) in line with global usage standards.
  • 4. Good insulation performance and high electric strength.
  • 5. Full load high temperature burning machine, 100% aging test.
  • Specifications:
  • Model: HS-60-12
  • DC output voltage: 12V
  • Output voltage tolerance: ±1%
  • Rated output current: 20A
  • Output current range: 0 – 20A
  • Ripple and noise: 100mVp-p
  • Line stability: ±0.5%
  • Load stability: ±0.5%
  • DC output power: 240W
  • Efficiency: 85%
  • DC voltage adjustable range: ±10%
  • Input voltage range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC
  • Input current: 2A/115V 1A/230V
  • Inrush current: cold start current 30A/115V 60A/230V
  • Leakage current: <3.5mA/240VAC
  • Overload protection: 105%~150%
  • Overvoltage protection: 15%-135%
  • Temperature coefficient: ±0.03%/°C (0-50°C)
  • Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
  • Shock resistance: 10 – 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axle
  • Pressure resistance: input and output: 3KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
  • Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ
  • Working temperature, temperature: -10 ° C – +60 ° C, 20% – 90% RH
  • Storage temperature, temperature: -20 ° C -+85 ° C, 10% – 95% RH
  • Dimensions: 200× 110 × 50 mm
  • Package Included:
  • 1 xAC 100-240V to DC 12V 20A 240W Switching Power Supply Module







​​​​​​​
